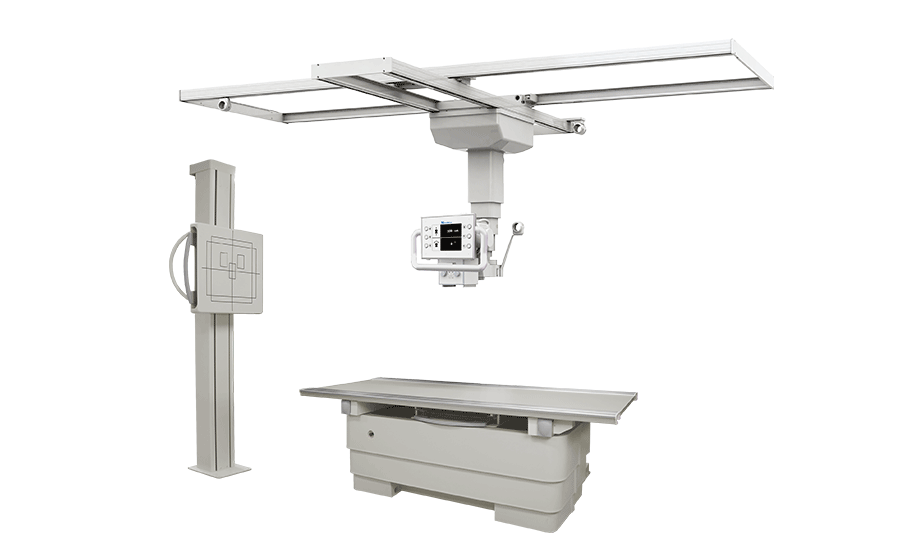

Jumong (M Type)

by SG HealthCare

PRINCIPLE

Fully featured and designed for chest, supine and other radiography examinations. Whatever you need, you can find the right solution with an ease.

SYSTEM

  • High-throughput performance and easy workflow.
    Up to threefold efficiency.

  • RIS modality worklist interface for patient’s examination
    and grouped procedure configuration

  • Configurable procedure step sequencing by predefined APRs

  • Consistent gray scale presentation

  • Auto Tracking

FEATURES

  • Vertically motorized overhead tube crane

  • Auto sync with wall stand

  • Freedom of movement

Medika - Digital Xray - Jumong M
Medika - Digital Xray - Jumong M

SPECIFICATIONS

  • Generator - 50kW, 40-150kV, Mini console (65kW, 80kW, AEC, DAP, 15” Touch console optional)​

​

  • Detector - Scintilator (CsI / Gadox), effective area 423mmx423mm, 127 micron pixel pitch, image preview in 3 sec, 3.9lp/mm spatial resolution

​

  • Tube - 300kHU, 0.6/1.2mm, Min 32-77kW (Option 400kHU, 600kHU)

​

  • Collimator - Manual with ruler (Option CU or AL filters, Laser centering and time adjusted light system)

​

  • Console & WS - Integrated console with generator, HIR/HIS, OS Windows, 500GB, 4G RAM, 24” LED monitor

​

  • Overhead Tube Crane - Vertically motorized and manual (auto tracking), Longitudinal travel: 3320mm.  Transverse travel: 2500mm.  Vertical travel: 1500mm.  Tube rotation: Horizontal 150degree to 180degree with catch point at -90degree, 0degree, 90degree.  Vertical: -150degree to 150degree.  Angle indicator with SID

​​

  • Wall Stand - Manual by hand, Min, 375mm – Max. 1790mm from floor

​

  • Floating Table - 350kg patient weight capacity, Table top filtration 0.8mm Al. Equivalent (Option: carbon fiber, up-down movement).  Length : 2,200mm.  Width: 800mm.  Height: 700mm
